VERSION 2.0 CHROME dashboard with transmission sensor and oil and coolant temperature sensors for Suzuki Intruder VZR1800 /M1800R or Boulevard M109R motorcycles.
Features of the model:
VERSION 2.0 is the most popular model for motorcycles 06-09 in design and functionality! Of course, its most significant element is the compact transmission indicator, which for some reason was not provided in the versions of Suzuki M109R / VZR1800 / M1800R 06-09... But the dashboard 2.0 will also endow your bike with other useful functions: an oil temperature sensor and a coolant temperature sensor!
Design options:
The chrome version can be purchased in this product card.
The black version of the panel 2.0 can be found at this link...Specification:
The coolant temperature sensor will be useful not only to check the operation of the automatic cooling system of the motorcycle, the presence of the liquid itself, but also to identify many other possible failures of the automatic systems of the motorcycle related to cooling.
The oil temperature sensor is indispensable when traveling at the beginning of the season or in cold weather, when the ambient temperature can negatively affect the operation of an unheated engine. Thanks to the oil temperature sensor, you will always know when your bike has warmed up and can take you from point "A" to point "B" without damage to the engine. The temperature sensor will also be very useful when changing the oil on this bike, because checking the oil level and gradually topping it up is done only on a hot engine! It is the temperature sensor that will tell you when the engine has warmed up as much as possible and you can check the oil level!
Equipment.

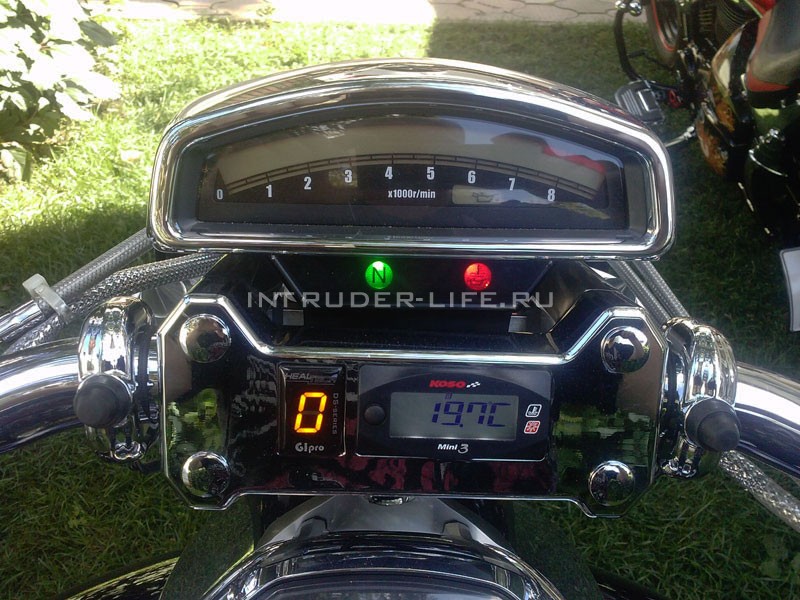

The chrome dashboard is installed instead of the stock steering wheel mounts and contains:
the transmission sensor, which is connected to the diagnostic connector and reacts instantly to the transmission switching, unlike analog systems that read rotation data;
an oil temperature sensor that will help extend the life of the engine at the beginning of the season, in cold weather, when it is necessary to warm up the engine to 40-50 degrees before the trip;
the sensor of the cooling system - will not allow you to miss the moment of liquid leakage from the radiator and will prevent other problems associated with fluid loss or fan failure;

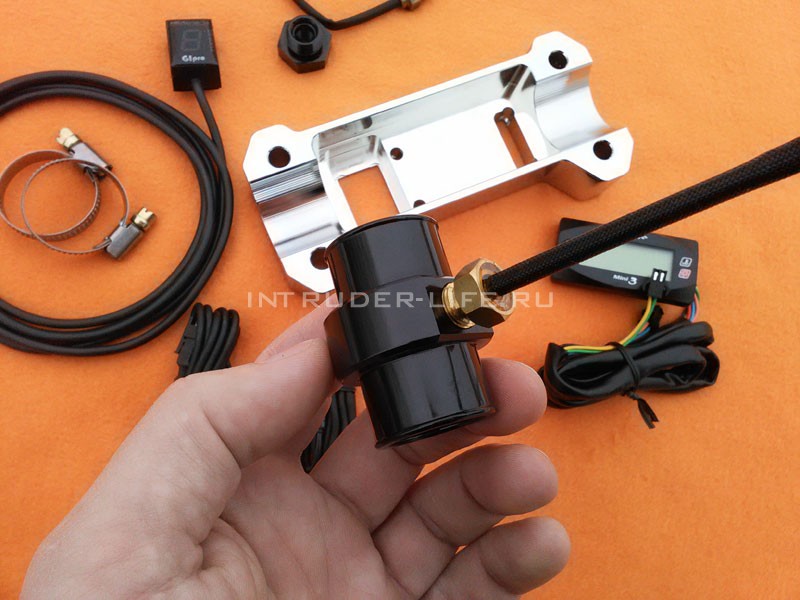

a set of fasteners and "tie-in" elements for connecting sensors to motorcycle systems.
Connection:
The transmission sensor (indicator) is connected to the standard diagnostic connector located under the driver's seat.
At the same time, you do not need to solder anything! The oil temperature sensor is screwed in instead of the standard plug from the bottom of the engine, and the radiator temperature sensor cuts into the standard hose of the cooling system. For more detailed installation instructions, see the video below.
Video instructions for installing the dashboard VERSION 2.0.Delivery:
Delivery is carried out throughout Russia, to the countries of the former Soviet republics and Europe.
At your request, you can choose to send by regular mail, EMS or another transport company when approving the order. The cost of shipment is calculated upon receipt of information about the recipient's city and depends on the dimensions and weight of the cargo.
It is also possible to pick up the order from Pushkino, Moscow region or delivery by courier within the MKAD (subject to approval).
