RGB "horseshoe" with remote control and turn turn signals, brake and "emergency" for Suzuki Boulevard M109R / M90 / M50, or Intruder VZR1800 / M1800R / VZ1500 / VZ800 +VIDEO DEMO AND VIDEO INSTRUCTIONS

price: 20 550 р.

RGB LED multicolor backlight (also called "horseshoe") for Suzuki Intruder VZR1800 / M1800R / VZ1500 / VZ800 (10+) or Boulevard M109R / M90 / VZ800 (10+).

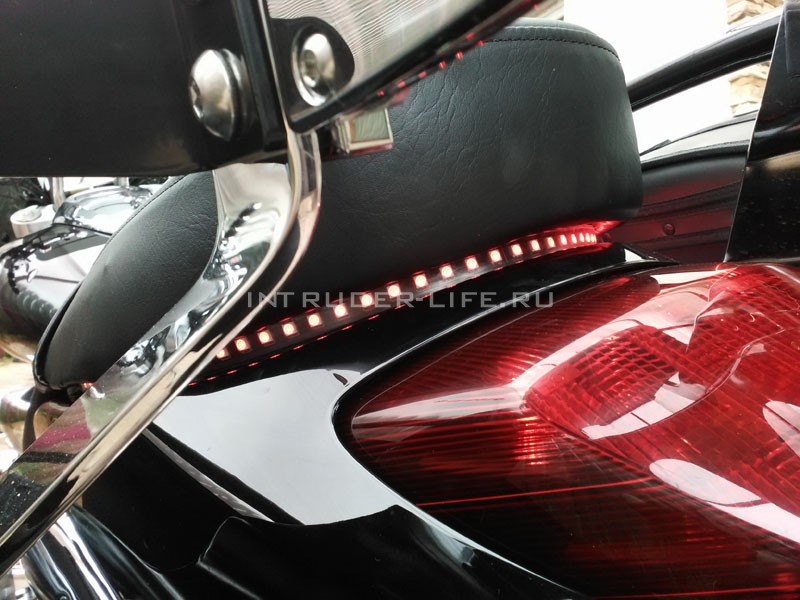

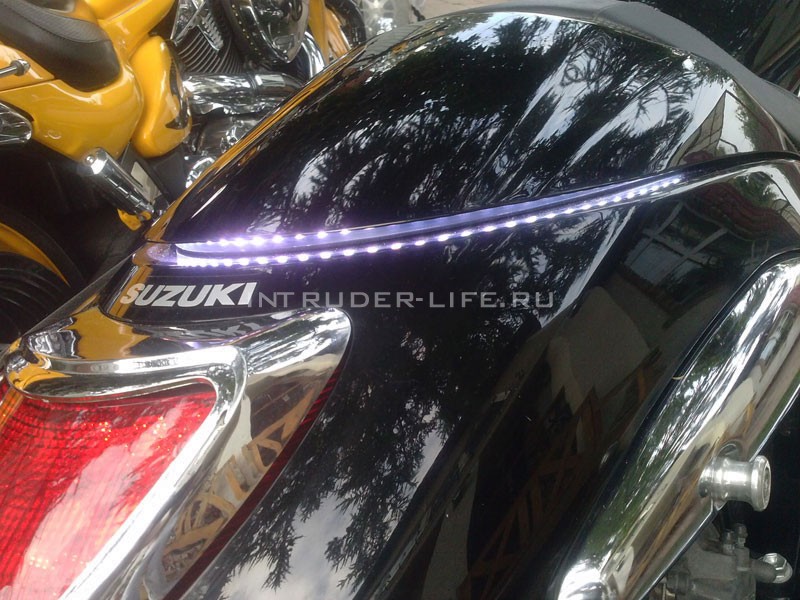

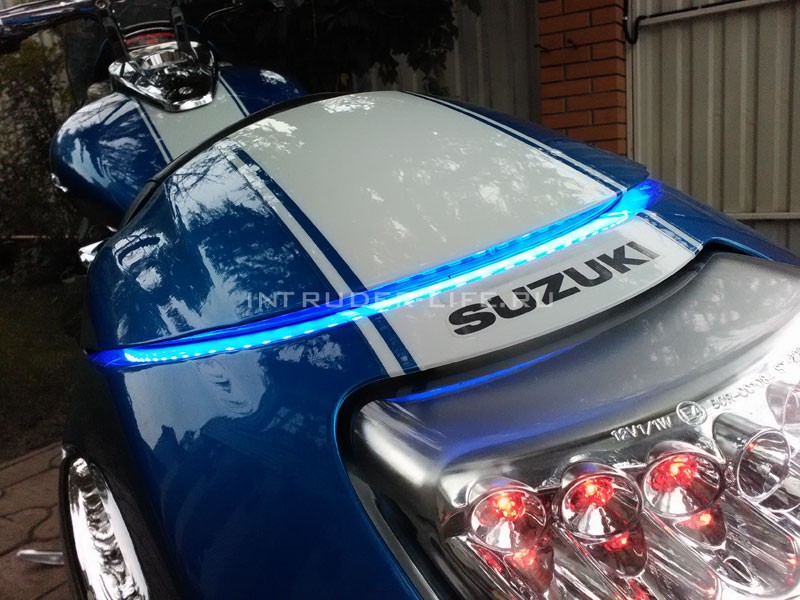

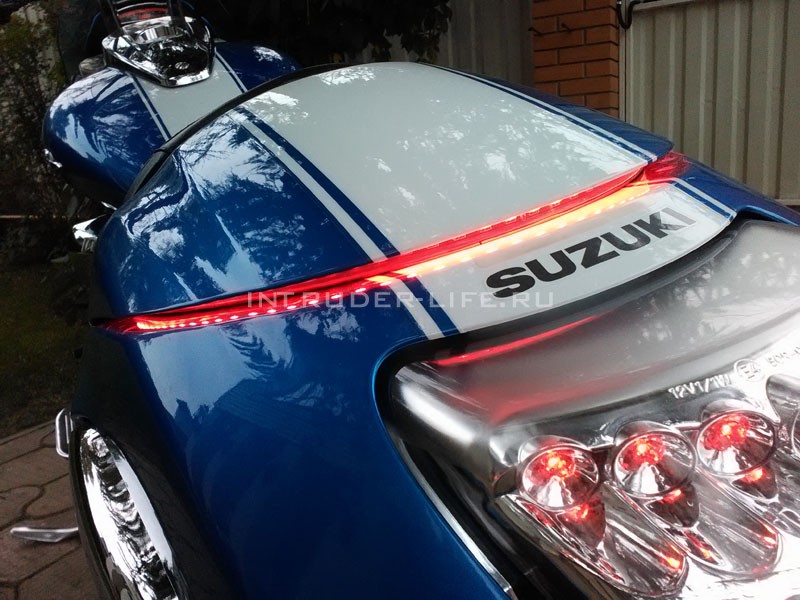

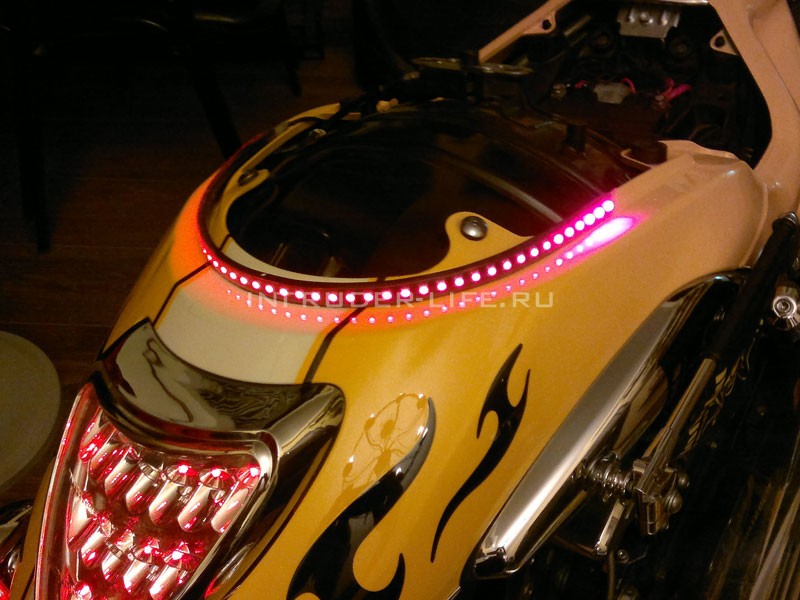

The horseshoe is installed only on the standard rear wing under the passenger seat or the rear seat cover (see video and photo). The horseshoe also has a remote control keychain that allows you to switch a large number of backlight modes and combine them at different speeds. In addition to decorative functions, the horseshoe has a built-in support of dimensions, a brake light, turn signals and an emergency light.

Full list of horseshoe functions: repetition of turn signals;

  • duplicates the dimension;

  • duplicates the brake light;

  • it has 5 modes of speed effects;

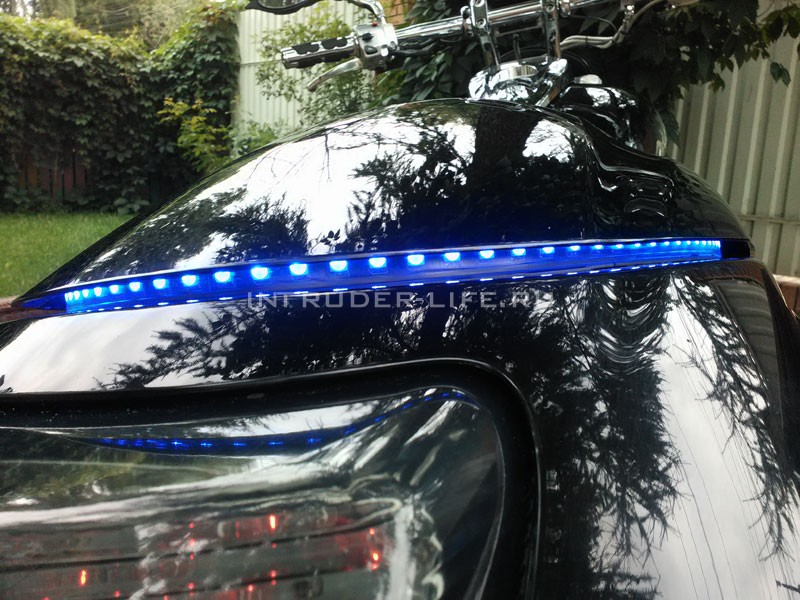

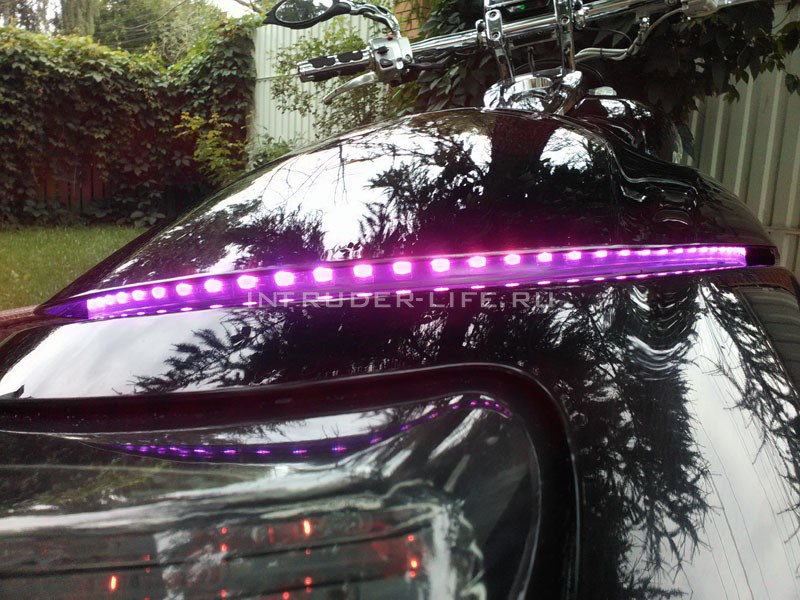

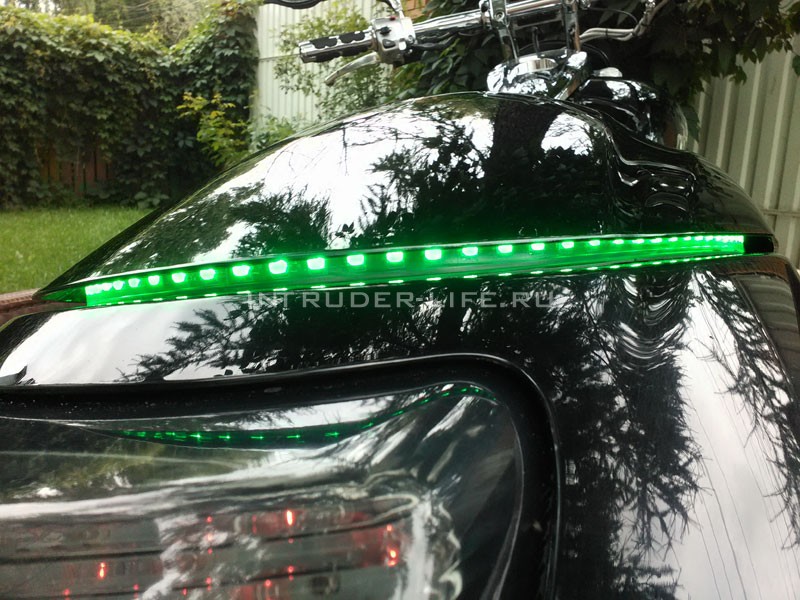

  • it has 7 color options;

  • there is a police strobe mode;

  • supports the "crash" mode;

  • it has 14 interactive modes;

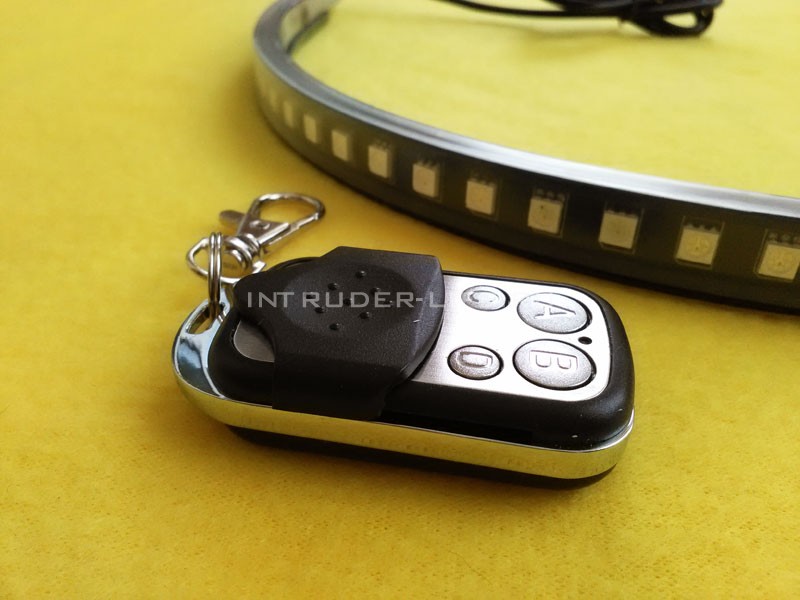

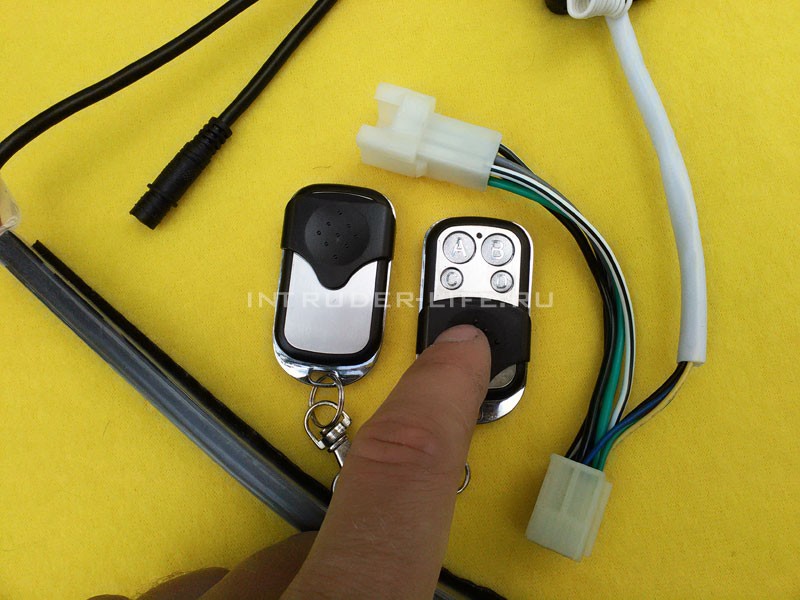

  • controlled by a remote control;

  • it can be used both with a passenger seat and with a standard cover.

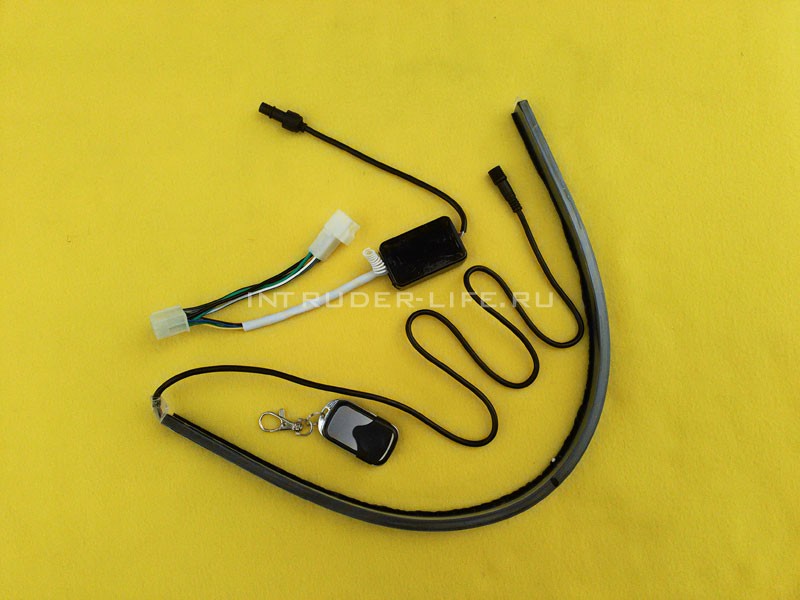

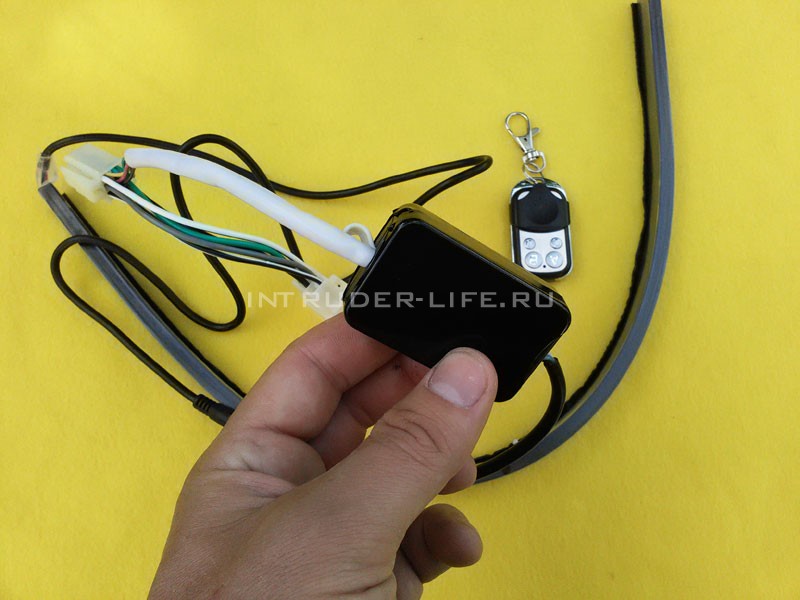

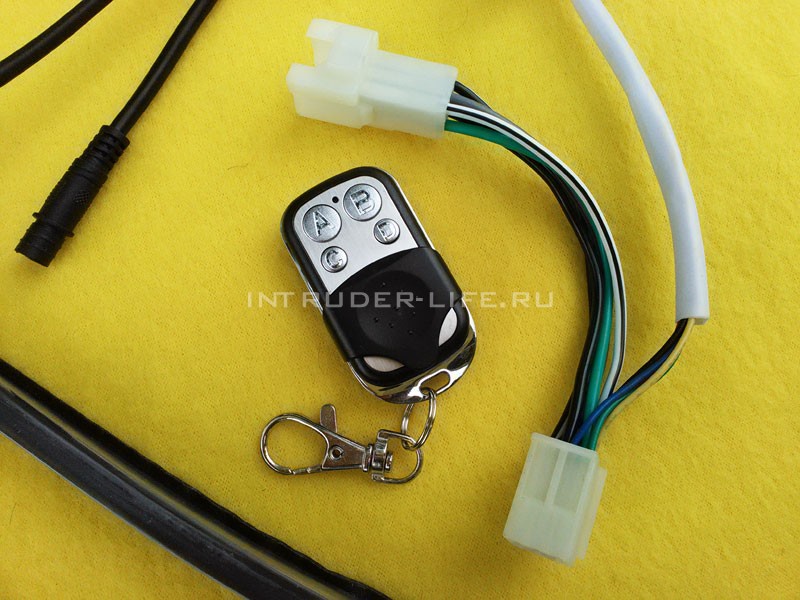

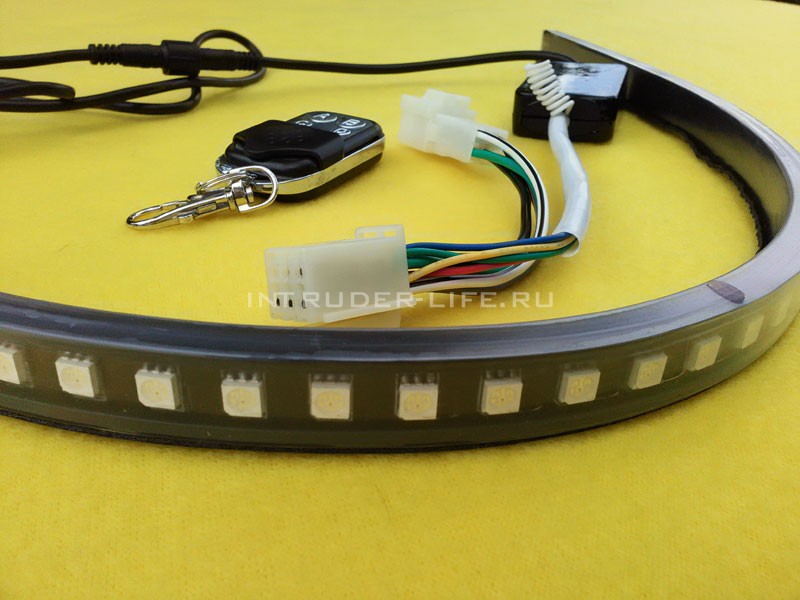

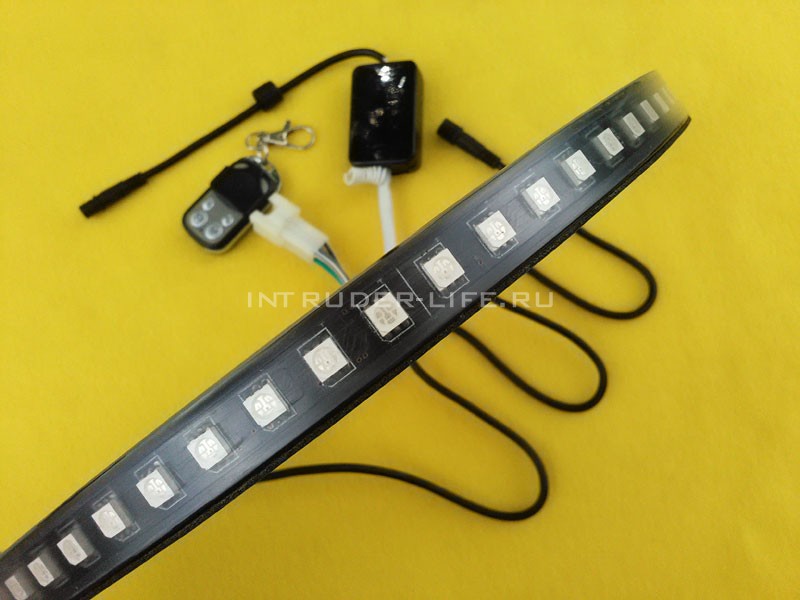

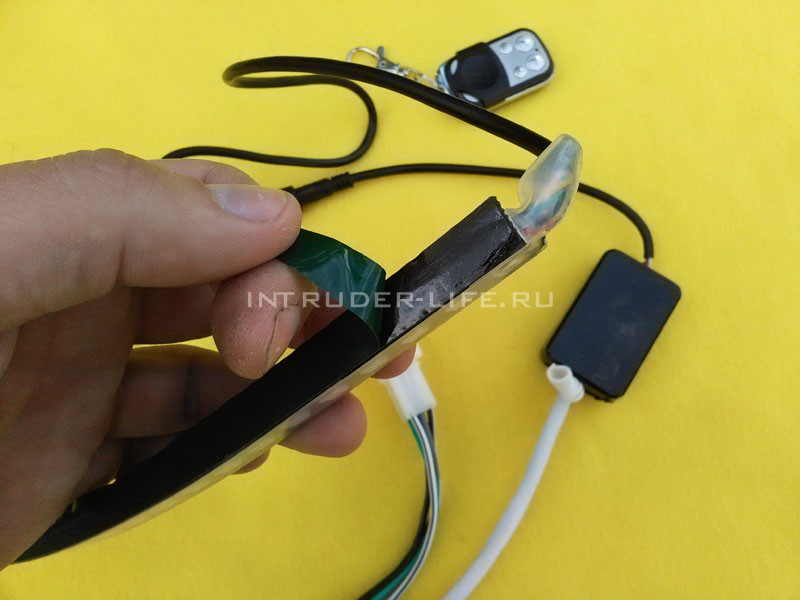

Equipment: Remote control and sealed fixed-shape LED strip with installation kit.

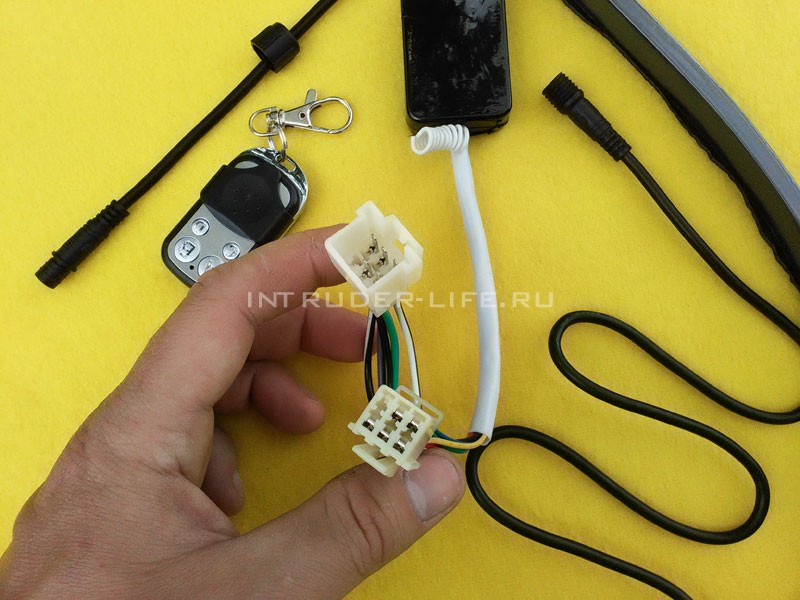

You don't need to solder anything! The equipment is connected to the regular connectors of the motorcycle. There is a color illustrated instruction!

Installation on VZ1500 /M90. To install the "horseshoe" on this model, you will need to swap the two wires in the standard "chip" of the power supply of the rear dimensions of the motorcycle.
The need for the procedure is caused by the fact that on the VZR1800 / M1800R / M109R the "chips" are similar, but the wires go in a different order.

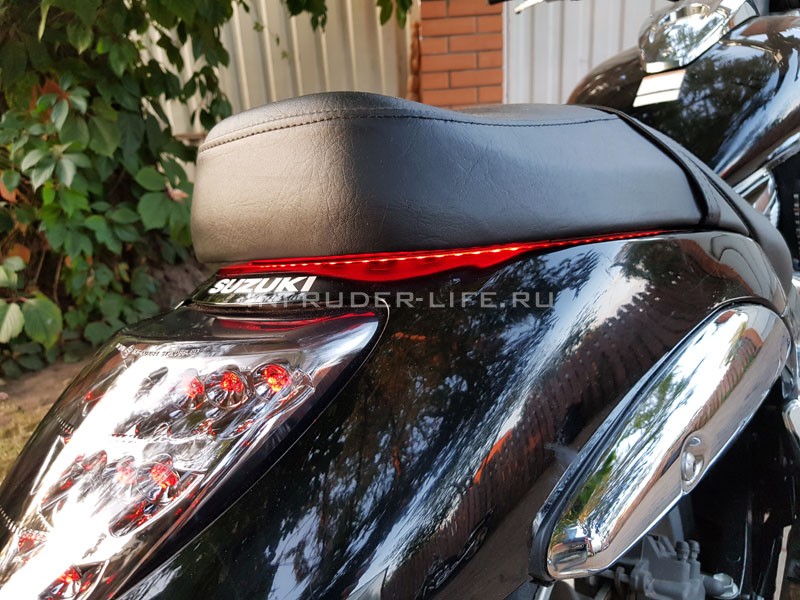

If you do not have a plastic plug installed, but a passenger seat, then it is RECOMMENDED that you rivet its back side and grind off the back of the plastic by 5-7 mm in order to slightly open the "horseshoe" (see photo No. 6).

Installation on VZ800/M50. Although this "horseshoe" is not provided for this motorcycle model, but it is easily adaptable for installation on RESTYLED Suzuki Intruder VZ800 / Boulevard M50 models, but only from 2010 and above!
To install the horseshoe on these models, it is necessary to remove the standard horseshoe chip and simply solder the wires to the corresponding power and control wires located under the driver's seat (the wiring harness that goes under the rear wing).

Video instructions for installing the "diode horseshoe" on the example of M109R / VZR1800.Delivery:
