Reinforced BLACK bracket for turn signals and license plate "BOSS" instead of the standard plastic mounting plate Suzuki VZR1800 / M109R / M1800R or VZ1500/ M90 +VIDEO INSTRUCTIONS!

price: 5 150 р.

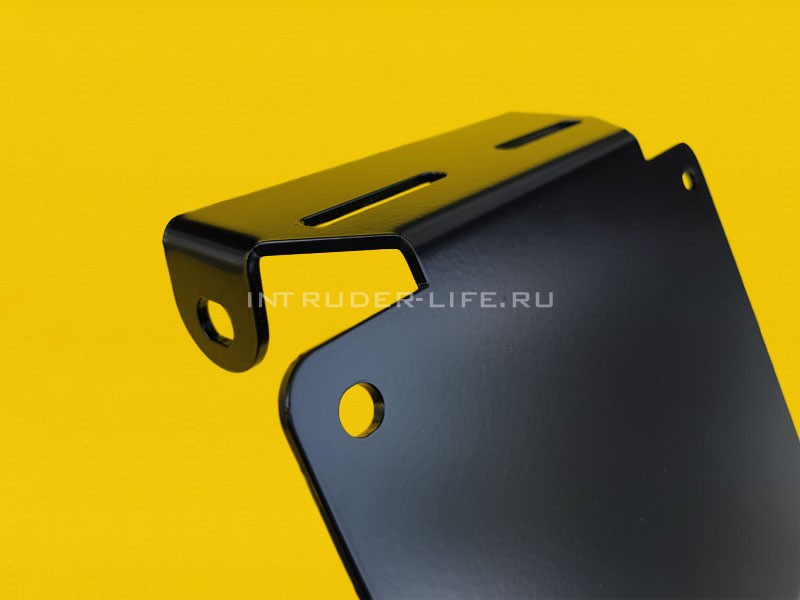

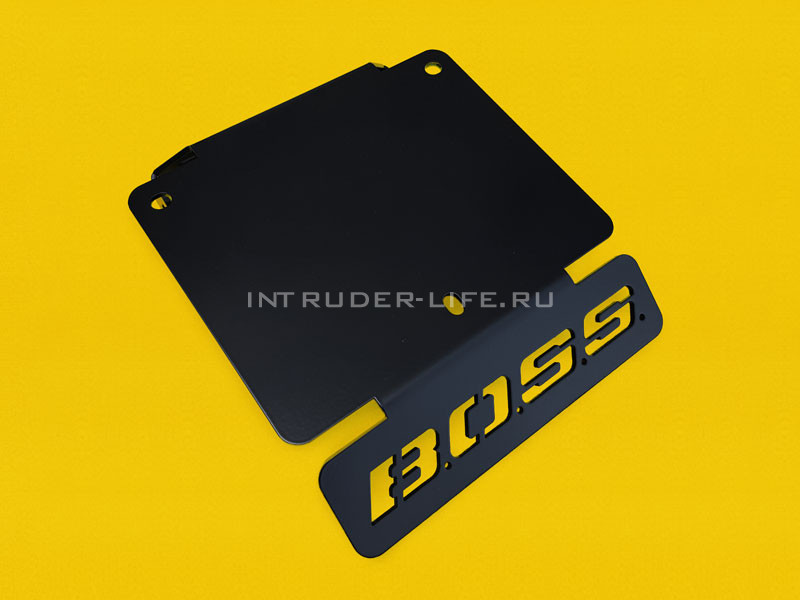

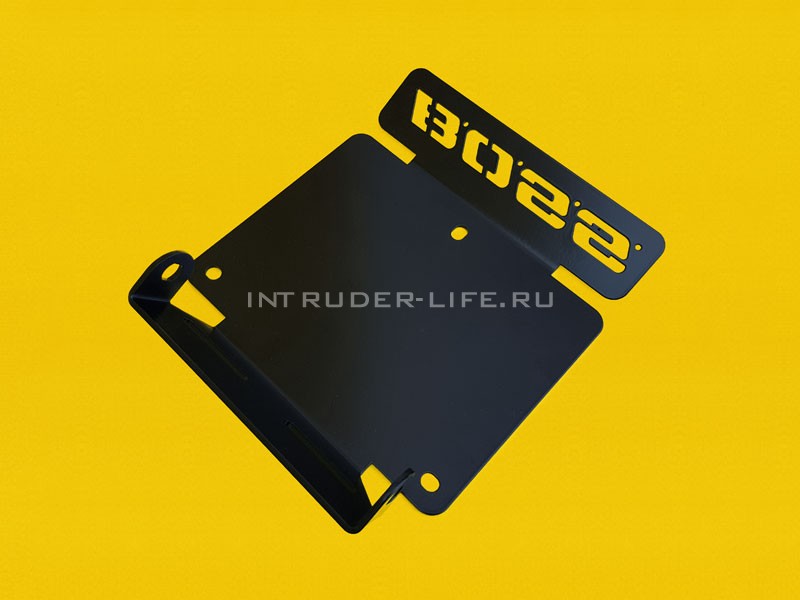

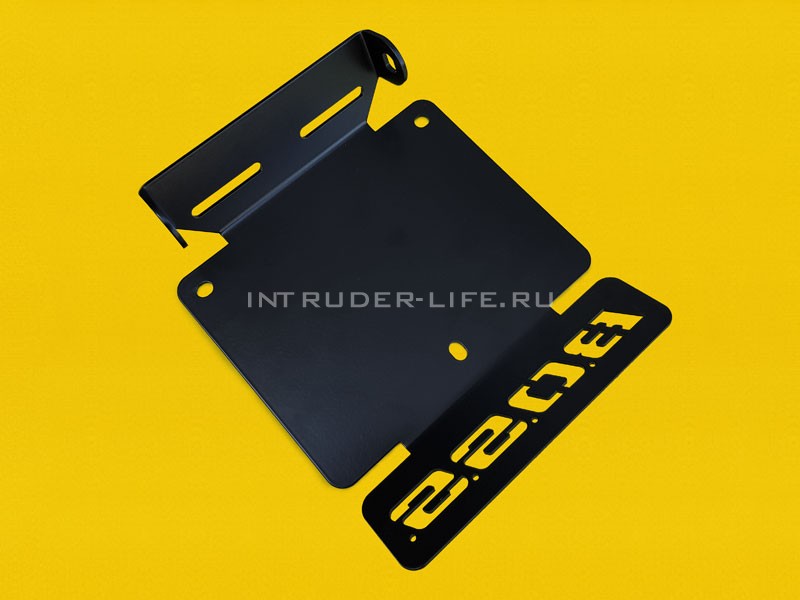

Reinforced BLACK bracket with the inscription "BOSS" for the license plate and turn signals instead of the regular "tail" of Suzuki Intruder VZR1800 / VZ1500 or Boulevard M109R / M90 motorcycles.

This card (pictured) presents a bracket for the NEW Russian license plate format, but we can also make a bracket for the old Russian format, as well as for any European, American and other license plate formats!

By installing this bracket, you will securely fix the license plate and open the rear wheel even more, without the threat of throwing dirt on your back! Also, this bracket will be useful for those who are going to return the room to its regular place, and the original fender has already been sawn off...

It's no secret that the stock "tail" on which the Suzuki VZR1800 / M109R / M1800R or VZ1500 / M90 license plate number and backlight are mounted is designed for European license plates and is designed for their size and weight. When installing the Russian model, there is a large "windage" of this plastic wing. In combination with constant vibration when adding "gas", as well as on the road, with any shallow hole, the plastic wing has a constant "swing". This process leads to the appearance of a vertical crack on the plastic of the underwing and its subsequent splitting into two parts. It is for this reason that on Suzuki VZR1800 / M109R / M1800R or VZ1500 / M90 the number is transferred to a metal bracket in the wheel, the options of which you can find at this link...

But in the case of using side trunks on a motorcycle, placing the number in the wheel is not possible. In this case, this version of the bracket will be useful to you, as well as in the case of the principal use of the license plate in the regular place.

Complete products:

  • You can get acquainted with the black and white complete 3D cover of the generator at this link...

  • You can get acquainted with the black and gray complete 3D generator cover at this link...

  • You can get acquainted with the black and yellow complete 3D generator cover at this link...

  • The complete radiator grille is located at this link...

Manufacturing and design options:
The bracket is manufactured in Russian production from stainless steel with a thickness of 3 mm in powder coating! You can choose a glossy black or matte version of the bracket coating without changing its cost.

To install the bracket, it is necessary to remove the plastic underwing and cut off its part with the "ears" of the turn signals and the lower part with the mounting of the number and the backlight (dividing the underwing into two parts). After "cutting off" the excess plastic and installing the rest of the fender in the regular place, you will find the holes for two bolts released from the bottom of the fender. It is in these holes that a new metal bracket for fixing turn signals is installed, and the license plate mount is already screwed to it. Thus, your license plate will rise significantly higher to the wing, and all fasteners, including turn signal mounts, will be replaced from plastic to metal.

Video instructions for installing a similar "collapsible" bracket - the installation procedure for this bracket is completely identical.

Delivery is carried out throughout Russia, to the countries of the former Soviet republics and Europe. At your request, you can choose to send by regular mail, EMS or another transport company when approving the order. The cost of shipment is calculated upon receipt of information about the recipient's city and depends on the dimensions and weight of the cargo.
It is also possible to pick up the order from Pushkino, Moscow region or delivery by courier within the MKAD (subject to approval).
