Complete kit to repair / replace the clutch + springs Suzuki Intruder VZR1800 / M1800R or M109R Boulevard 2006 - 2009 edition +INSTALLATION VIDEO!

price: 46 750 р.

This is a complete set of modified clutch for Suzuki Intruder VZR1800 / M1800R or Boulevard M109R 2006 - 2009 motorcycles from an American manufacturer!

Please note that this clutch kit is also suitable for models from 2010 and above, but solves a number of individual problems on the 06-09 models!

The kit consists of lightweight clutch discs and a set of springs with increased wear resistance, which correct not only the design mistakes of 2006 - 2009, but also make it possible to switch ALL gears more gently!

A bonus!
Now we are putting a Japanese drain gasket of the engine cover into this kit for FREE, which is disposable and needs to be replaced immediately after opening the clutch compartment! Do not put the lid on the sealant - this is a "collective farm"! See photo No. 6 (gasket article 11482-48G00-000).

Specification:
If you have problems with your clutch on Suzuki Intruder / Boulevard (M109R / VZR1800) 2006 - 2009, you replace the clutch with a new stock one - problems with shifting gears from first to second and rapid wear will come back to you again! It is necessary to change the worn-out clutch to a new version - a reinforced kit with correction of design flaws of the first generation. This kit has a lower weight of discs, which this time are made of another more durable and lightweight material, which reduces the load on the springs and reduces their wear. The springs themselves are also made of a more durable material, and the reduced weight of the friction discs eliminates their deformation and "loosening", which previously caused your clutch to rattle violently. The kit also takes into account the famous problem of complicated switching between first and second gear, which often caused the clutch to fail at a faster pace...
The fact is that in the 06-09 models there was a structural defect, which consisted in the fact that there was an increased tooth difference between the sizes of the gears of the 1st and 2nd gears, which led to the possibility of switching between the first and second gears only at speeds below 15 km per hour (at speeds higher, switching was difficult and it led to a breakdown). In the models of 2010 and above, this problem was eliminated already in the stock version. Thanks to the installation of a new lightweight set of discs, the process of switching from first to second speed is also significantly facilitated, but this does not negate the fact that this is not a "sport bike" and it is strictly forbidden to turn on the speeds on it with a kick!

A remark!
There are no problems with the clutch of these motorcycles! These motorcycles have problems with some owners who like to turn on the kick speeds! This motorcycle has a special problem with the owners who switched to them from sports motorcycles! I have one of the 2008 bikes with a stock clutch and there are no problems with it and it is not expected! Also, if you change the clutch somewhere to EBC discs, buy two or three sets at once, because you will change this "China" at least 2 times during the season!

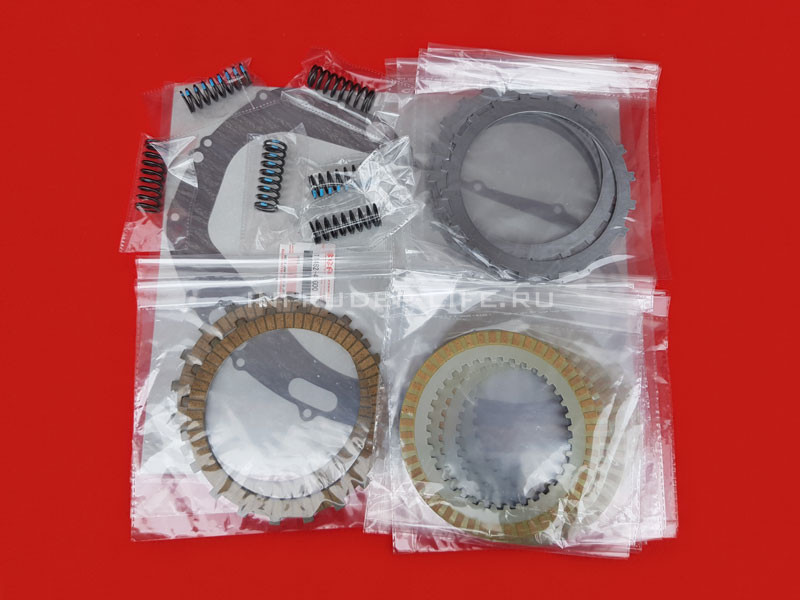

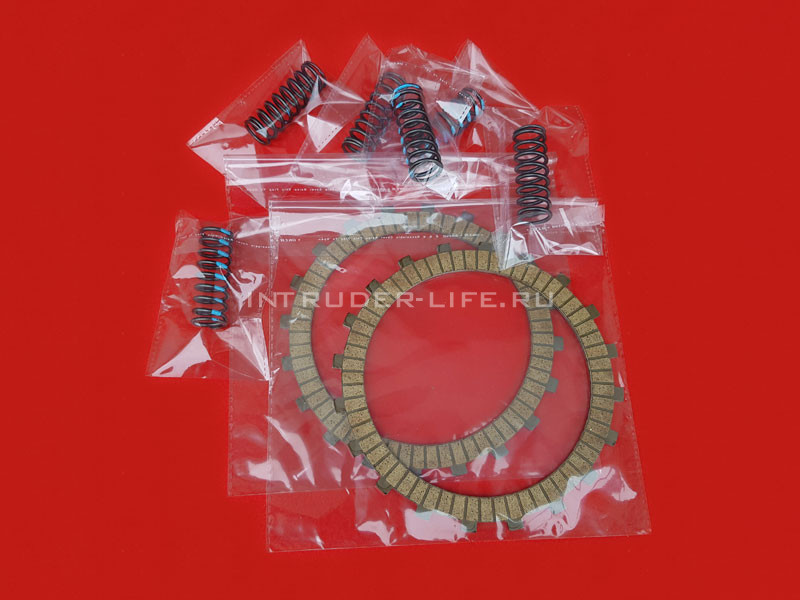

Package contents:

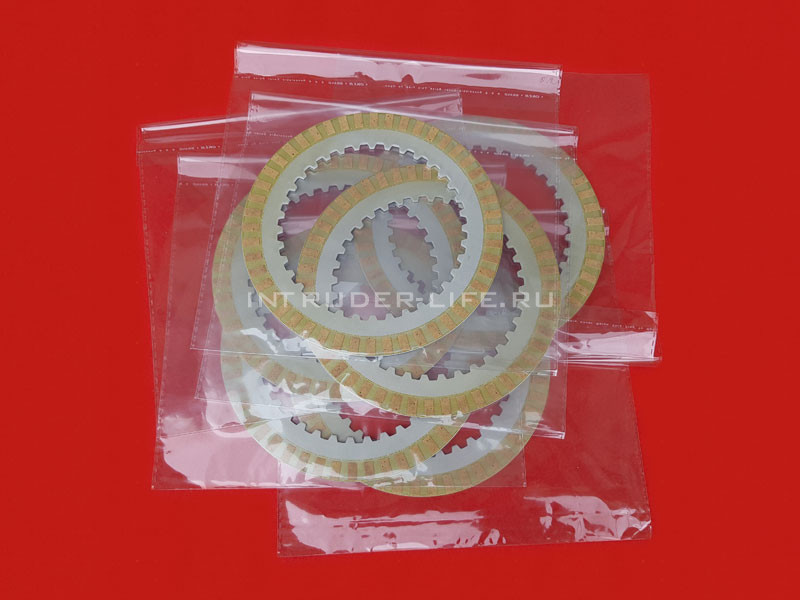

  • friction discs - 6 pieces;

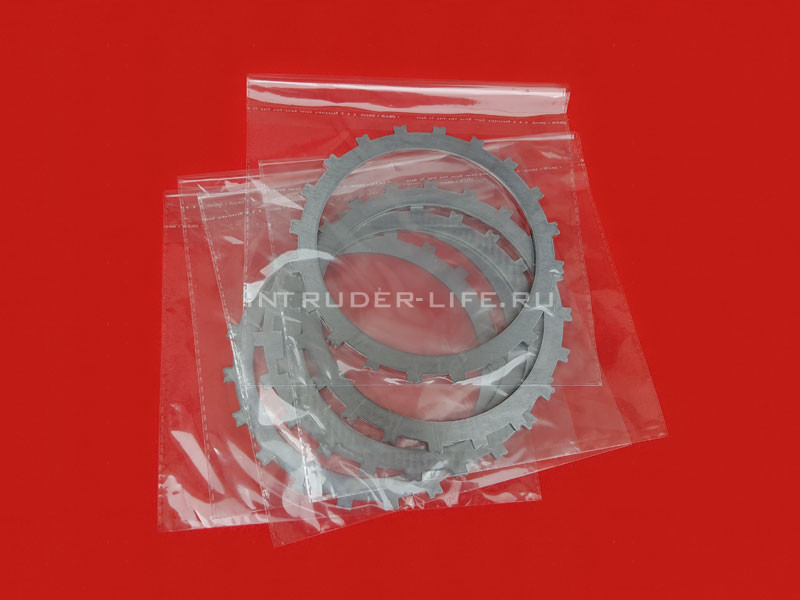

  • metal discs - 5 pieces;

  • semi-friction discs - 2 pieces;

  • springs - 6 pieces;

  • the gasket of the engine cover is 1 piece.

We also recommend purchasing an additional set of stock discs to completely replace the clutch on your motorcycle. You can find the additional kit at this link...

Video on replacement and correct sequence of clutch assembly on Intruder VZR1800 / M1800R or Boulevard M109R.



Adjustment of the "fungus" and the tightening torque of the clutch cover bolts on the M109R / VZR1800 / M1800R.
Attention! In the video, the information on the tightening moment of the bolts of the basket lid was cut off, and therefore we add the information here! The torque of the torque wrench is 0.55 kgf/m. It is necessary to tighten the bolts diagonally, moving to the opposite side of the lid to the adjacent bolt!



Preparing the new clutch on the M109R / VZR1800 / M1800R for the first ride:



How to check the correctness of the "squeeze" of the clutch lever of a motorcycle?:



The sudden loss of motorcycle power is the simplest reason...



Delivery:
Delivery is carried out throughout Russia, to the countries of the former Soviet republics and Europe. At your request, you can choose to send by regular mail, EMS or another transport company when approving the order. The cost of shipment is calculated upon receipt of information about the recipient's city and depends on the dimensions and weight of the cargo.

It is also possible to pick up the order from Pushkino, Moscow region or delivery by courier within the Moscow Ring Road (subject to agreement).

Learn more about payment and delivery...

After receiving the order, do not forget to leave your feedback.
