Servo INDICATOR Emulator for Suzuki Boulevard M109R / C109R or Intruder VZR1800 / M1800R / VLR1800 motorcycles +VIDEO INSTALLATION INSTRUCTIONS!

price: 13 350 р.

INDICATOR emulator of the servo drive (exam) of the exhaust system of Suzuki Boulevard M109R / C109R or Intruder VZR1800 / M1800R / VLR1800 motorcycles.

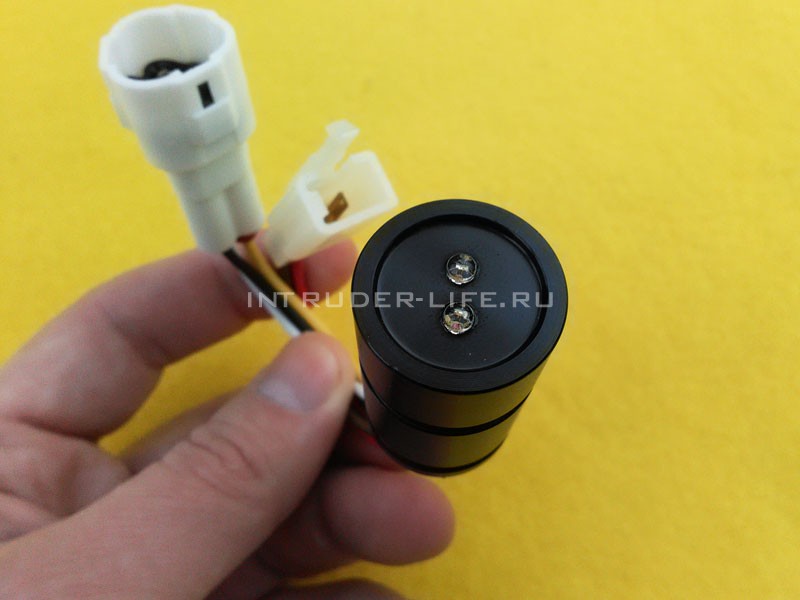

Installation and features of the diode indication:
This version of the emulator has diode indicators that visualize its operation and are responsible for simulating commands for cable tension from the motorcycle's "brains" by the emulator. That is why it is recommended to place this emulator, for example, in the battery compartment basket on the M109R or in another place accessible for quick visual access on other motorcycle models. An indication of the operation of this system will be useful when looking for solutions to other problems in the event of a FL error, as it is responsible for a number of problems on the motorcycle. A working indication of the servo emulator will immediately exclude this sector from the search. You can find a simpler indicator-free version of the emulator at this link...

Specification:
The emulator is used on motorcycles with ram exhaust systems installed on them. The main problem that is fixed when installing the emulator is the error FL (from the English fail, which is mistakenly called "F1" due to the similarity of the English L and 1) - it is also the error C46 by code identification. It is this error that starts flashing on your dashboard after installing direct current. The fact is that when the stock muffler is dismantled, the servo is removed, which regulates the opening and closing of the throttle valve using the tension of two cables. This damper, during normal operation of the system, is constantly in motion and then pumps gases into the exhaust system, then releases them with varying degrees of intensity. All this is controlled by an algorithm that is "stitched" into the "brains" of the motorcycle and thereby forces the exhaust system to work in tandem with the engine, which allows the motorcycle to achieve maximum efficiency, which is built into it by engineers! By installing direct current, you are destroying this system and the emulator is one of the means of compensating (stabilizing) its operation.

Wrong solution to problem number 1.
Often, would-be craftsmen, having obtained information from the Internet, simply remove the servo and cut off one of the wires that goes from the "brains" of the motorcycle. This wire is responsible for powering the servo and error indication on the dashboard. Such a "repair" is not a solution to the problem, but only removes the error indication without solving it.

Wrong solution to problem number 2.
The second solution to this problem is to install a lock on the servo. This lock is included with most direct currents and looks like a small metal part that is screwed onto a servo instead of a hooking mechanism that controls the tension of the cables. This will partially solve the problem, but there is one big BUT! The fact is that the lock very roughly "locks" the servo when it is scrolling left and right, when the tension of the cables is simulated, and the servo uses several plastic gears that will lose half of the teeth in one year of intensive operation... Thus, the blocker disables the servo quite quickly, which will lead to the return of the error indication "FL".

The right decision.
The option of installing an electronic emulator instead of a standard servo drive will not only make the motor work in a balanced manner, but also save an expensive original part that may still be useful to you.

Compatibility:

  • Boulevard M109R / Intruder VZR1800 / M1800R of all model years;

  • Boulevard C109R / Intruder VLR1800;

  • As well as other models of Suzuki B-King motorcycles (2008-2012), GSX-R600 (2004-2010), GSX-R750 (2004-2010), GSX-R1000 (2001-2008), GSX-S1000 (2015 and above).

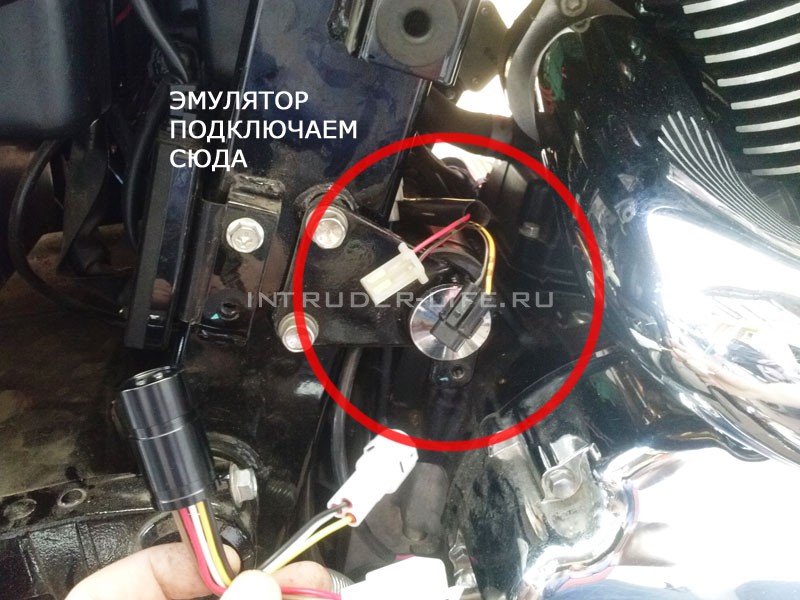

Video instructions for installing a servo emulator on the M109R using the example of the emulator version with an indicator.



Delivery:
Delivery is carried out throughout Russia, to the countries of the former Soviet republics and Europe. If you wish, you can choose to send by regular mail, EMS, or another shipping company upon order approval. The shipping cost is calculated upon receipt of information about the recipient's city and depends on the size and weight of the cargo.

It is also possible to pick up an order from Pushkino, Moscow region, or deliver it by courier within the MKAD (subject to agreement).

Learn more about payment and delivery...

After receiving the order, do not forget to leave your feedback.
