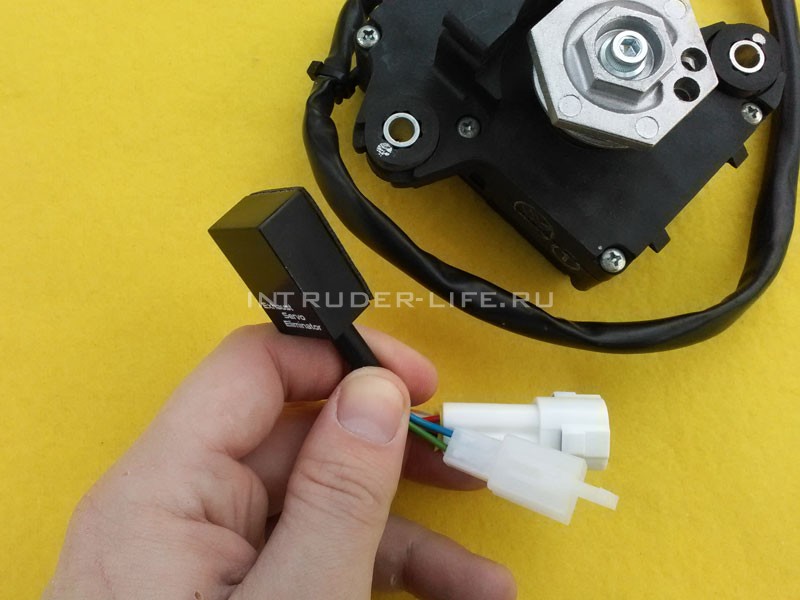

INDICATOR-FREE emulator of the servo drive (exam) of the exhaust system of Suzuki Boulevard M109R / C109R or Intruder VZR1800 / M1800R / VLR1800 motorcycles.
Specification:
The emulator is used on motorcycles with ram exhaust systems installed on them. The main problem that is fixed when installing the emulator is the error FL (from the English fail, which is mistakenly called "F1" due to the similarity of the English L and 1) - it is also the error C46 by code identification. It is this error that starts flashing on your dashboard after installing direct current. The fact is that when the stock muffler is dismantled, the servo is removed, which regulates the opening and closing of the throttle valve using the tension of two cables. This damper, during normal operation of the system, is constantly in motion and then pumps gases into the exhaust system, then releases them with varying degrees of intensity. All this is controlled by an algorithm that is "stitched" into the motorcycle's "brains" and thus forces the exhaust system to work in tandem with the engine, which allows the motorcycle to achieve maximum efficiency, which is built into it by engineers! By installing direct current, you are destroying this system and the emulator is one of the means of compensating (stabilizing) its operation.
Wrong solution to problem number 1.
Often, would-be craftsmen, having obtained information from the Internet, simply remove the servo and cut off one of the wires that goes from the "brains" of the motorcycle. This wire is responsible for powering the servo and error indication on the dashboard. Such a "repair" is not a solution to the problem, but only removes the error indication without solving it.
Wrong solution to problem number 2.
The second solution to this problem is to install a lock on the servo. This lock is included with most direct currents and looks like a small metal part that is screwed onto a servo instead of a hooking mechanism that controls the tension of the cables. This will partially solve the problem, but there is one big BUT! The fact is that the lock very roughly "locks" the servo when it is scrolling left and right, when the tension of the cables is simulated, and the servo uses several plastic gears that will lose half of the teeth in one year of intensive operation... Thus, the blocker disables the servo quite quickly, which will lead to the return of the error indication "FL".
The right decision.
The option of installing an electronic emulator instead of a standard servo drive will not only make the motor work in a balanced manner, but also save an expensive original part that may still be useful to you.
Compatibility:
Boulevard M109R / Intruder VZR1800 / M1800R of all model years;
Boulevard C109R / Intruder VLR1800;
As well as other models of Suzuki B-King motorcycles (2008-2012), GSX-R600 (2004-2010), GSX-R750 (2004-2010), GSX-R1000 (2001-2008), GSX-S1000 (2015 and above).
Installation:

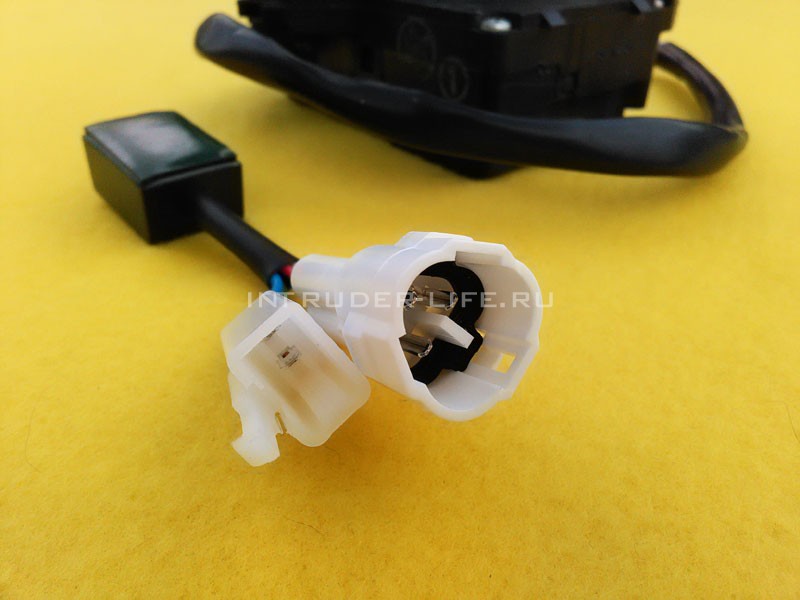

This version of the emulator is installed in the area of the standard contacts of the servo, because it does not have an indication. The version of the servo emulator with diode indication, which is installed in the visual accessibility area, can be found at this link...
Video instructions for installing the servo emulator on the M109R using the example of the emulator version with an indicator.
