Complete set of ORIGINAL Japanese Clutch + SPRINGS AND ENGINE COVER GASKET for Suzuki Intruder VZR1800 / M1800R or Boulevard M109R 2006-2009 +VIDEO SETUP INSTRUCTIONS!
This is a complete ORIGINAL clutch kit for Suzuki Intruder VZR1800 / M1800R or Boulevard M109R motorcycles from 2006-2009, including an ENGINE COVER GASKET AND CLUTCH SPRINGS!
Specification:
This is an original (stock/standard) clutch kit, which is manufactured by Suzuki and is installed on Intruder VZR1800 / M1800R or Boulevard M109R models from 2006 to 2009.

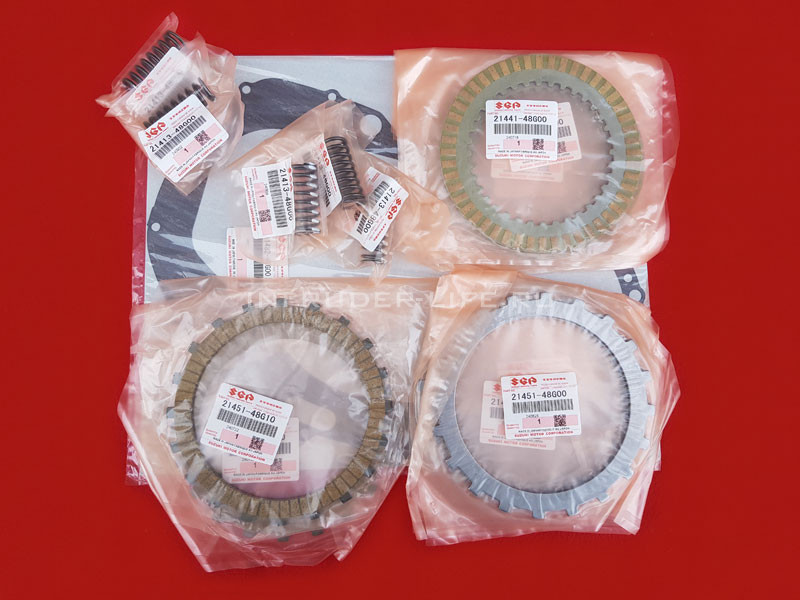

Package contents:
-

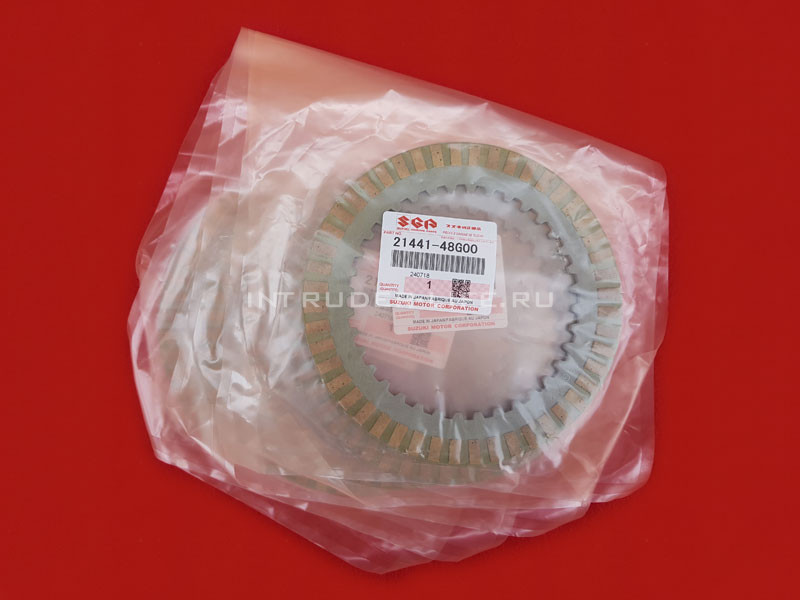

friction discs - 5 pieces;
-

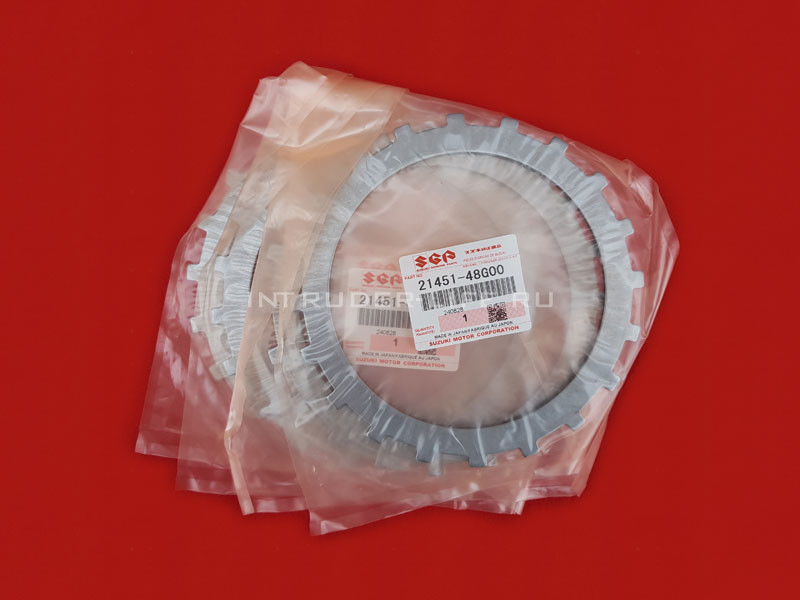

metal discs - 4 pieces;
-
semi-friction discs - 2 pieces;
-

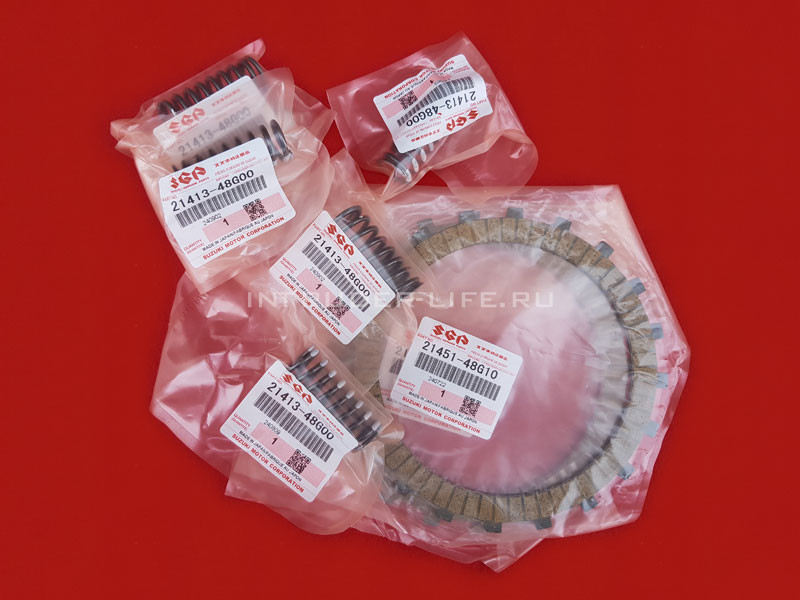

springs - 6 pieces;
-
engine cover gasket - 1 piece.
Recommendations:
-
We also recommend purchasing an additional set of stock discs to completely replace the clutch on your motorcycle. You can find the additional kit at this link...
-
You may be interested in replacing the original 06-09 clutch with an American custom one, the card of which you can find at this link...
Remark!
These motorcycles have no problems with the clutch! These motorcycles have problems with some owners who unscrew in the first two gears before cutting off and never pay attention to the backlash of the clutch lever cable... And there are also problems with the craftsmen who assemble the clutch in the wrong order, put the Chinese clutch "EBC" (EBC) and do not know how to adjust it during assembly! For example, my personal clutch on the M1800R is already 7 years old and cannot be replaced...
Video on replacing and proper assembly sequence of the clutch on Intruder VZR1800 / M1800R or Boulevard M109R.
Adjusting the "mushroom" and the tightening torque of the clutch cover bolts on the M109R / VZR1800 / M1800R.
Attention! In the video, the information on the tightening torque of the bolts of the basket lid was cut off, and therefore we add the information here! The torque of tightening with a torque wrench is 0.55 kgf/m. It is necessary to tighten the bolts diagonally, moving to the opposite side of the cover to the adjacent bolt!
Preparing the new clutch on the M109R / VZR1800 / M1800R for the first ride:
How do I check the correct "release" of the clutch lever on a motorcycle?:
Sudden loss of motorcycle power is the simplest reason...
Delivery:
Delivery is carried out throughout Russia, to the countries of the former Soviet republics and Europe. If you wish, you can choose to send by regular mail, EMS, or another shipping company upon order approval. The shipping cost is calculated upon receipt of information about the recipient's city and depends on the size and weight of the cargo.
It is also possible to pick up an order from Pushkino, Moscow region, or deliver it by courier within the MKAD (subject to agreement).
