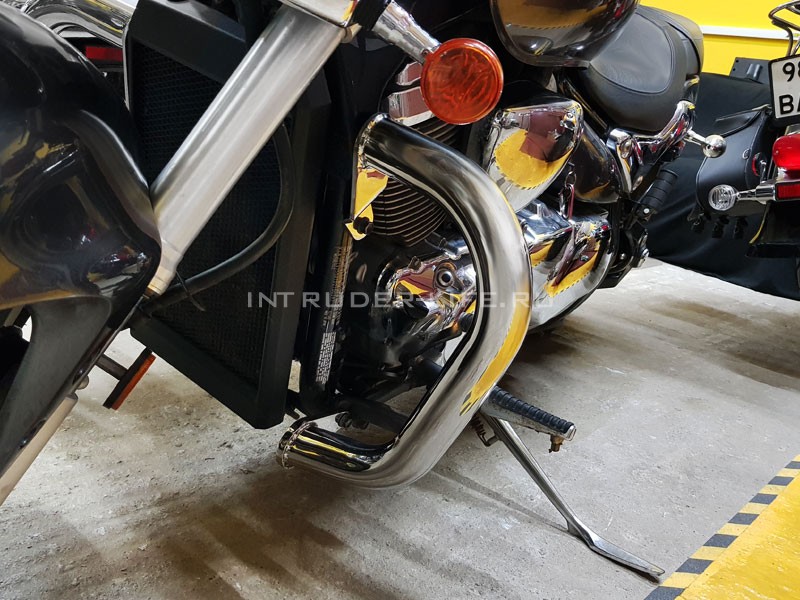

POLISHED safety arches with a DIAMETER of 51mm made of stainless steel "MADMAX1500" of Russian production for Suzuki Intruder VZ1500 / VL1500 or Boulevard M90 / C90 motorcycles.
Specification: This is a very high-quality analogue of the standard (stock) safety arcs, which are installed on the frame of the motorcycle, in the places provided for this by Suzuki engineers.
In our own production, we carefully studied the original arcs and, taking into account the wishes of the owners of the Suzuki M90 / VZ1500, took the best from the standard arcs, improving their design, and created a more brutal version of them.
Compatibility: Intruder VZ1500 / Boulevard M90 - all years;
Intruder VL1500 / Boulevard C90 - from 2013 and above.
The arcs are made of stainless steel, both in a polished version and in black, with a card of which you can find at this link...
What is saved from the regular arcs:
mounting system in the regular places of the motorcycle frame and under the front brackets of the driver's footrests;
integration with all regular motorcycle parts without the need for their "alteration" or relocation;
maximum degree of reliability.

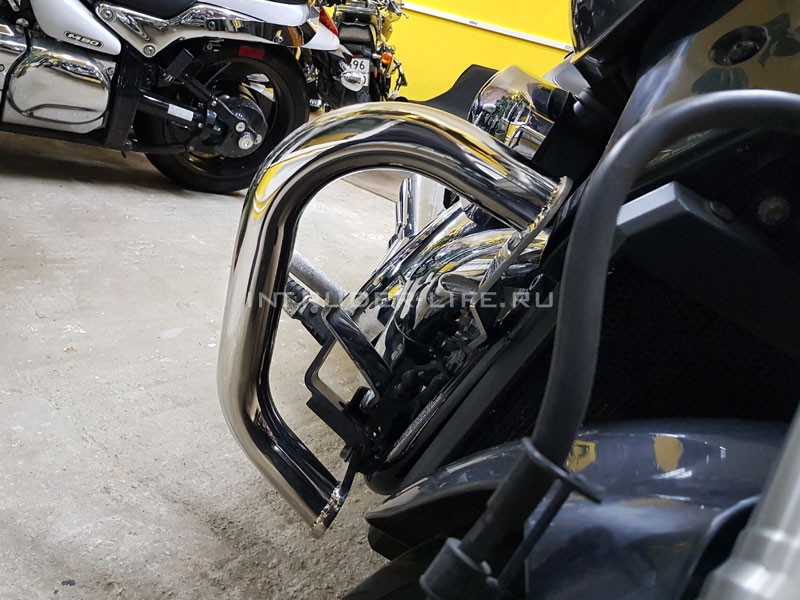

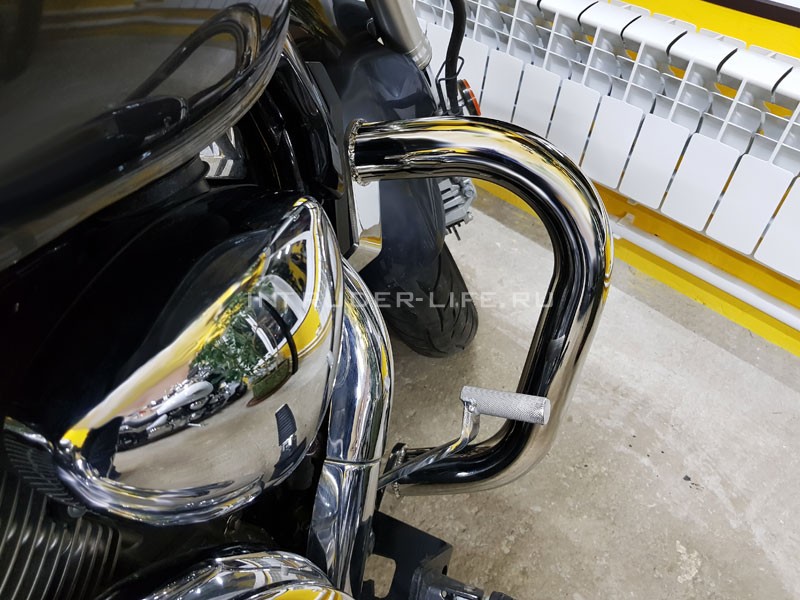

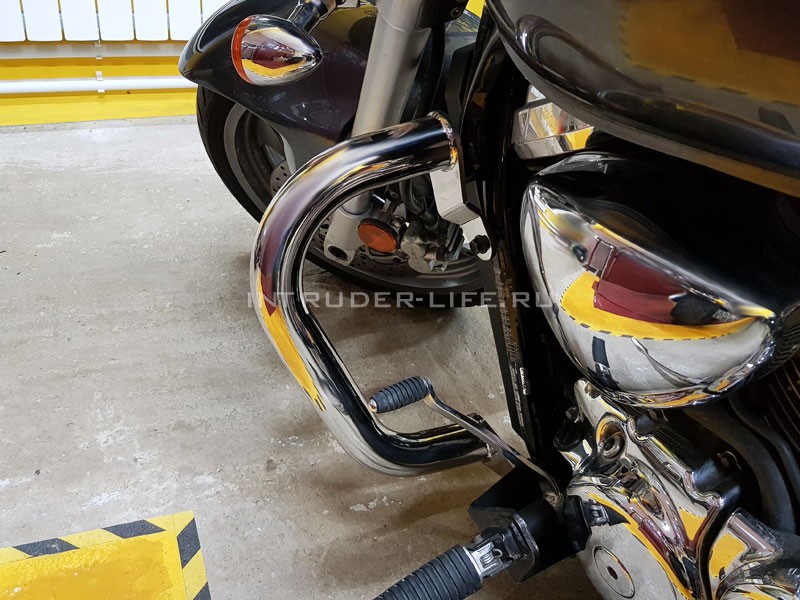

The main differences from the standard safety arcs: the "MADMAX1500" arcs have become twice as wide as the regular ones, but at the same time they are already steering and are located at the level of the center of the regular footrests;

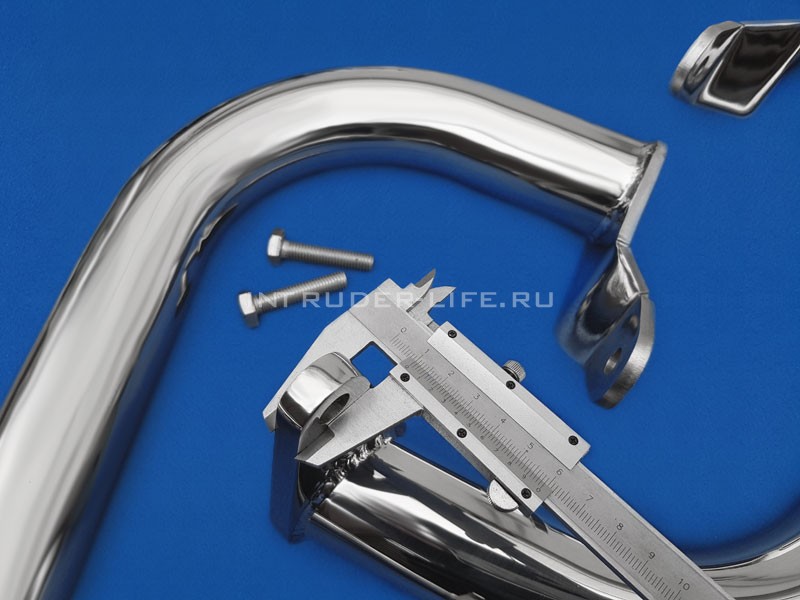

the diameter of the pipe has become 51mm, compared to the standard 32mm;
the slope of the arcs has been changed: the regular ones are tilted slightly forward with the upper part, and the "MADMAX1500" with the upper part are tilted slightly backward due to a longer extension of the lower bracket forward;
the length of the lower extension of the bracket has been increased due to which the arcs do not interfere with the gearshift lever and the rear brake pedal;

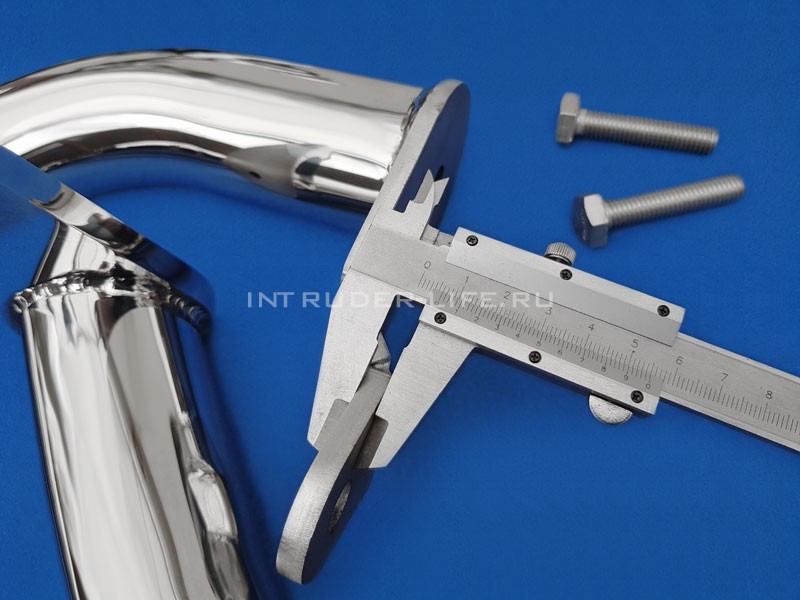

the thickness of the lower brackets has been increased from 6 to 10mm;
polished stainless steel is not inferior in luster to chrome and does not sparkle when rubbing against the surface, which means it is safer!
Installation: On the Intruder VZ1500 / Boulevard M90, you need to unscrew the front mounting bolts of the driver's footrest brackets, which will be used as fasteners for the upper part of both arches (just rearrange them).
The lower brackets of the arches are superimposed on top of the previously unscrewed bolts and are attracted by elongated bolts that are supplied in the kit. Installation of arcs does not require any special skills and will take 5-10 minutes, without the need to involve specialists!
The installation of arcs on Intruder VL1500 / Boulevard C90 - from 2013 and above is not much different from the installation on M90 / VZ1500, but it has one nuance. You need to unscrew the front mounting bolts of the driver's footrest brackets, which will be used as fasteners for the upper part of both arches (just rearrange them). But the lower brackets of the arches, unlike the M90 / VZ1500, you do not put bolts on top of the previously unscrewed bolts, but insert them between the frame and the driver's footrest bracket! At the same time, you need to unscrew the rear bolts of the footrest brackets and install the supplied bushings between the frame and the bracket. Thus, the brackets of the footrests on both sides of the motorcycle will extend by 1cm due to the insertion of the brackets of the arches in front and due to the sleeve at the back. Installation of arcs does not require any special skills and will take 5-10 minutes, without the need to involve specialists!
You can find the collapsible brackets for installing additional equipment on these arcs at this link...
There are no alternative advantages of exclusive arcs of the "MADMAX" series for Suzuki Intruder and Boulevard motorcycles.
