BLACK safety arches with a DIAMETER of 51mm made of stainless steel "MADMAX800" of Russian production for Suzuki Boulevard M50 / C50 or Intruder VZ800 / M800 / VL800 motorcycles, as well as Volusia.
Specification: This is a very high-quality analogue of the standard (stock) safety arcs, which are installed on the frame of the motorcycle, in the places provided for this by Suzuki engineers.
In our own production, we carefully studied the original arcs and, taking into account the wishes of the owners of Suzuki M50 / C50 / VZ800 / M800 / VL800 / Volusia, took the best from the standard arcs, improving their design, and created a more brutal version of them.
Design options: The arcs are made of stainless steel in a black matte or glossy powder coating (optional), as well as polished, with a card of which you can find at this link...
What is saved from the regular arcs:
mounting system in the regular places of the motorcycle frame and under the front brackets of the driver's footrests;
integration with all regular motorcycle parts without the need for their "alteration" or relocation;
maximum degree of reliability.
The main differences from the standard safety arcs: the "MADMAX800" arcs have become three times wider than the regular ones, but at the same time they are already steering and are located at the level of the center of the regular footrests;

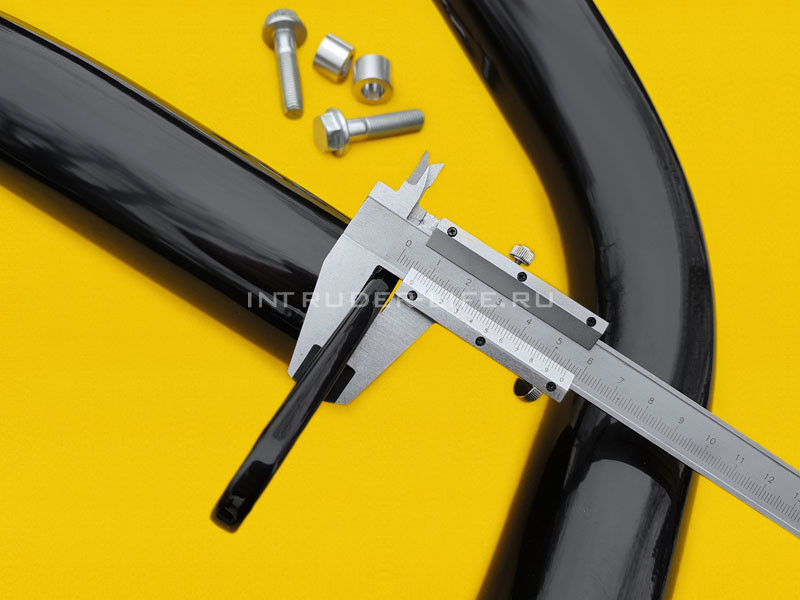

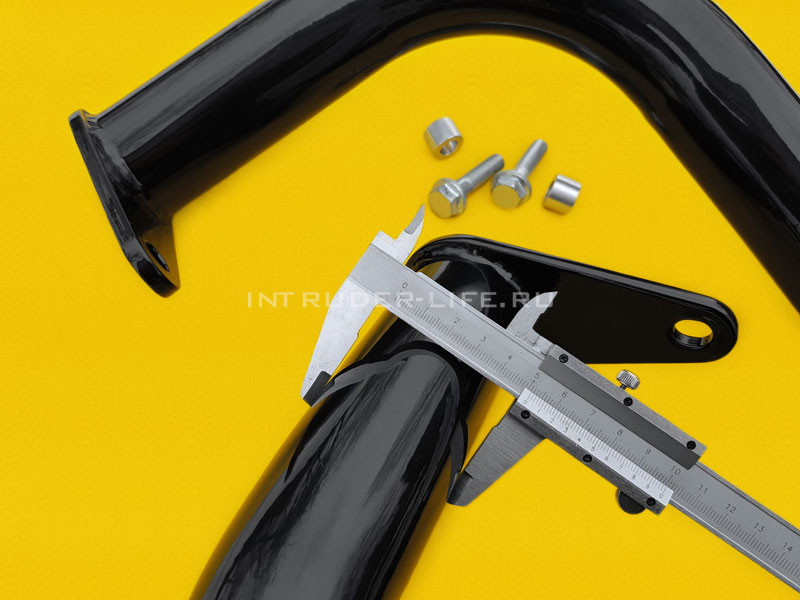

the diameter of the pipe has become 51mm, compared to the standard 32mm;
the length of the lower extension of the bracket has been increased due to which the arcs do not interfere with the gearshift lever and the rear brake pedal;

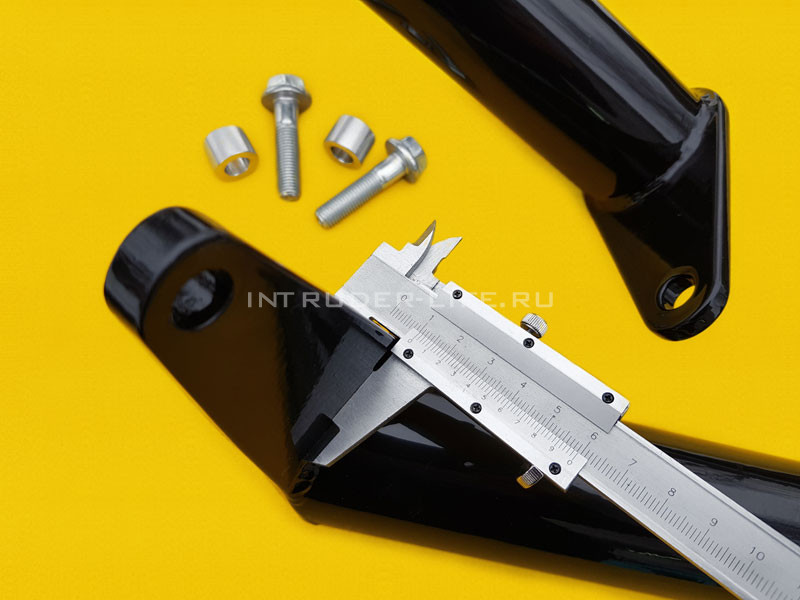

the thickness of the lower brackets has been increased from 6 to 10mm;
stainless steel does not spark when rubbing against the surface, which means it is safer!
Installation: it is necessary to unscrew the front standard mounting bolts of the brackets of the driver's footrests;
the released standard bolts should be used to attach the upper brackets of the arches to the standard holes located on the sides of the motorcycle frame;
attach the lower brackets of the arches on top of the holes unscrewed earlier bolts and secure with bolts that are supplied in the kit.
You can find the collapsible brackets for installing additional equipment on these arcs at this link...
There are no alternative advantages of exclusive arcs of the "MADMAX" series for Suzuki Intruder and Boulevard motorcycles.
Delivery: Delivery is carried out throughout Russia, to the countries of the former Soviet republics and Europe.
At your request, you can choose to send by regular mail, EMS or another transport company when approving the order. The cost of shipment is calculated upon receipt of information about the recipient's city and depends on the dimensions and weight of the cargo.
It is also possible to pick up the order from Pushkino, Moscow region or delivery by courier within the MKAD (subject to approval).
Learn more about payment and delivery...
