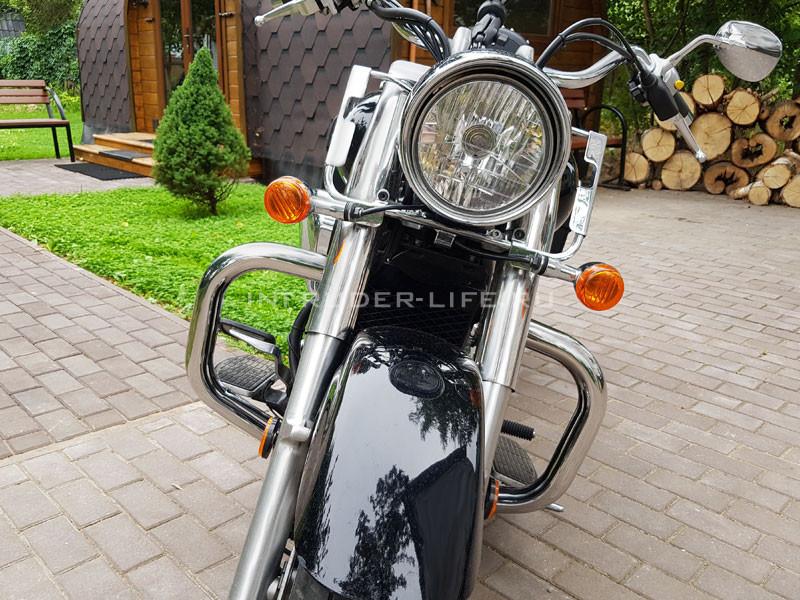

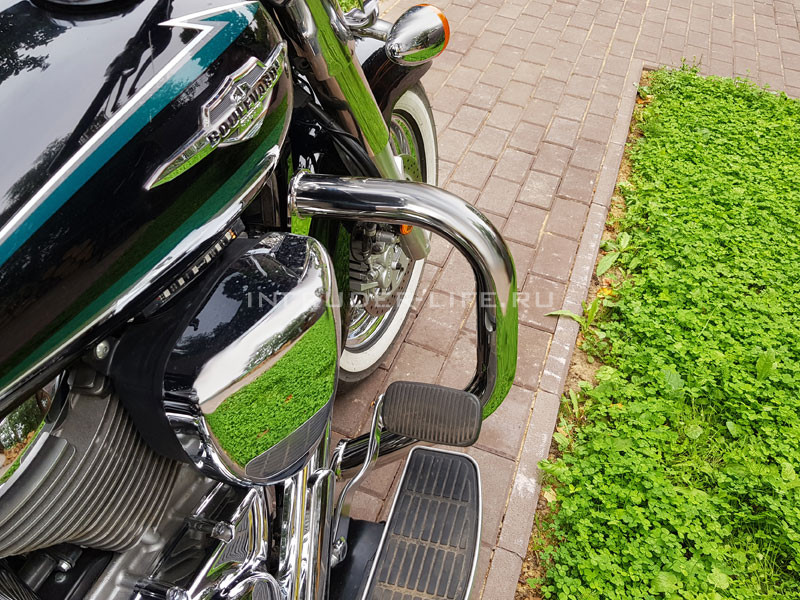

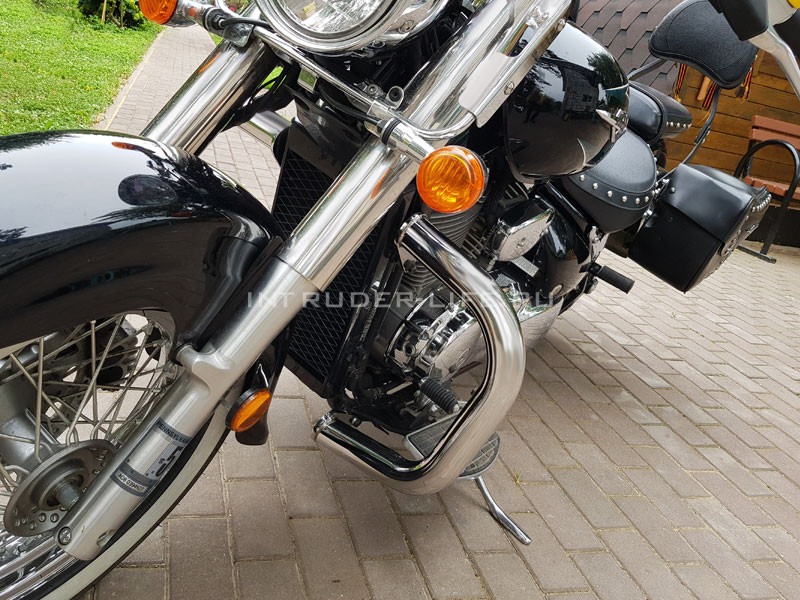

POLISHED stainless steel arcs "MADMAX800" with a diameter of 51mm for Suzuki Boulevard M50 / C50 or Intruder VZ800 / M800/ VL800 motorcycles, as well as Volusia +VIDEO!
POLISHED safety arches with a DIAMETER of 51 mm made of stainless steel "MADMAX800", Russian-made for Suzuki Boulevard M50 / C50 or Intruder VZ800 / M800/ VL800 motorcycles, as well as Volusia.
Specification:
This is a very high-quality analogue of the standard (stock) safety arcs, which are installed on the motorcycle frame, in the places provided for this purpose by Suzuki engineers. In our own production, we have carefully studied the original arches and, taking into account the wishes of the owners of Suzuki M50 / C50 / VZ800 / M800 / VL800 / Volusia, we have taken the best from the standard arches, improved their design, and created a more brutal version of them.
Design options:
The arcs are made of stainless steel, both in a polished version and in black, the card of which you can find at this link...
What is saved from the regular arcs:
-
the fastening system in the regular places of the motorcycle frame and under the front brackets of the driver's footrests;
-
integration with all standard motorcycle parts without the need to "alter" or move them.;
-
maximum degree of reliability.
The main differences from standard safety arcs are:
-
The MADMAX800 arches have become THREE times wider than the regular ones, but they are narrower than the steering wheel and are located at the center of the regular footrests.;
-
The pipe diameter has become 51mm, compared to the standard 32mm;
-
the length of the lower bracket extension has been increased, due to which the arcs do not interfere with the gearshift lever and the rear brake pedal;
-
The thickness of the lower brackets has been increased from 6 to 10 mm.;
-
polished stainless steel is as shiny as chrome and does not spark when rubbing against the surface, which means it is safer!
Installation:
-
it is necessary to unscrew the front standard mounting bolts of the driver's footrests;
-
The released standard bolts should be used to attach the upper brackets of the arches to the standard holes located on the sides of the motorcycle frame.;
-

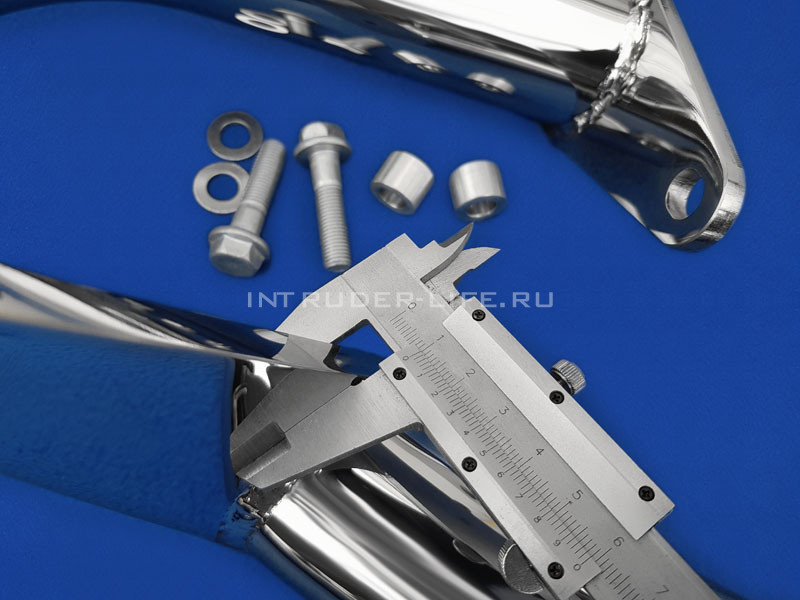

Attach the lower brackets of the arches over the holes that were previously unscrewed and secure with the bolts that are supplied in the kit.
Additionally:
You can find the collapsible brackets for installing additional equipment on these arches at this link...
There are no alternative advantages of exclusive arches of the MADMAX series for Suzuki Intruder and Boulevard motorcycles.
Delivery:
Delivery is carried out throughout Russia, to the countries of the former Soviet republics and Europe. If you wish, you can choose to send by regular mail, EMS, or another shipping company upon order approval. The shipping cost is calculated upon receipt of information about the recipient's city and depends on the size and weight of the cargo.
It is also possible to pick up an order from Pushkino, Moscow region, or deliver it by courier within the MKAD (subject to agreement).
Learn more about payment and delivery...
After receiving the order, do not forget to leave your feedback.
